MC4 Series Solar Connector

008657781682010

sales@johnnelectric.com

+86-18105771210

MC4 Series Solar Connector

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

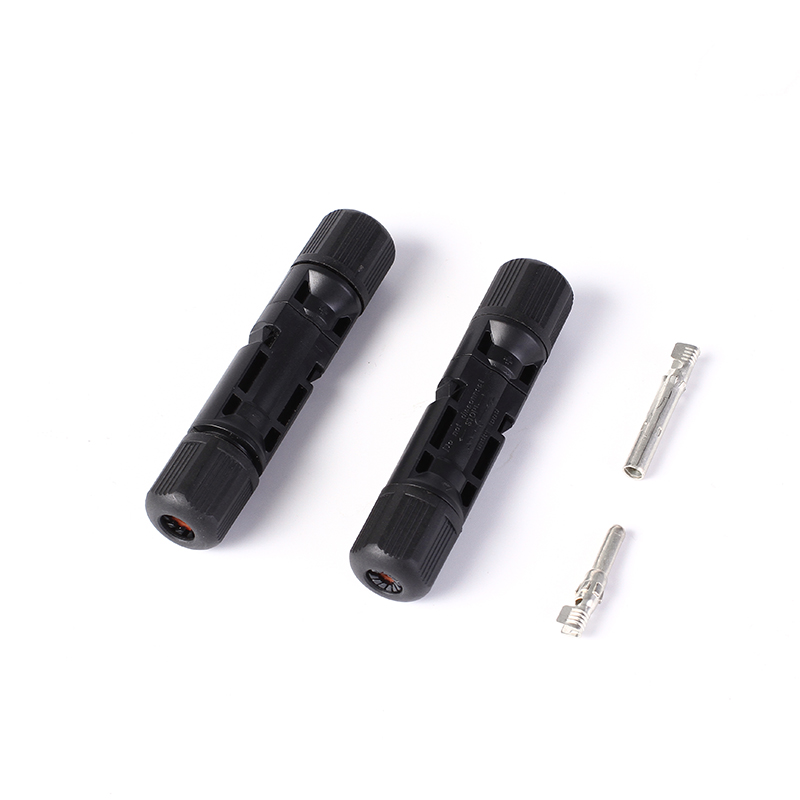

Solar DC Connector

PV-LTM1(1000V)

PV-LTM1-1(1000V)

PV-LTM2(1000V)

PV-LTM2-1(1000V)

PV-LTM3(1000V)

PV-LTM3-1(1000V)

PV-LTM4(1000V)

PV-LTM4-1(1000V)

Technical Data:

Connector System	φ4mm
Rated Voltage	1000V DC(IEC)1
Rated Current	17A(1.5mm2) 22A(2.5mm2, 14AWG) 30A(4mm2, 6mm2; 12AWG,10AWG)
Test Voltage	6KV(50HZ, 1min.)
Ambient Temperature Range	-40℃...+90℃（IEC) -40℃...+75℃（UL)
Upper Limiting Temperature	+105℃(IEC)
Protection Level（Mated）	IP67
Protection Level（Unmated）	IP2X
Contact Resistance of Connector	0.5mΩ
Safety Level	Ⅱ
Contact Material	Copper Alloy, Tin Plated
Insulation Material	PC/PPO
Connection mode	Snap-in
Flame Class	UL 94-V0
Salt Spray Test ,Degree of Severity 5	IEC 60068-2-52

Branch Connector

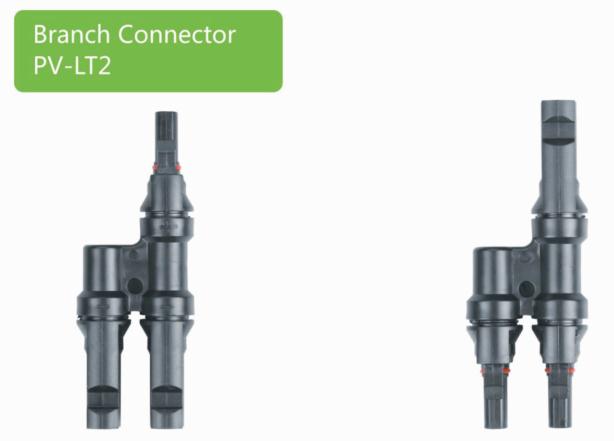

PV-LT2

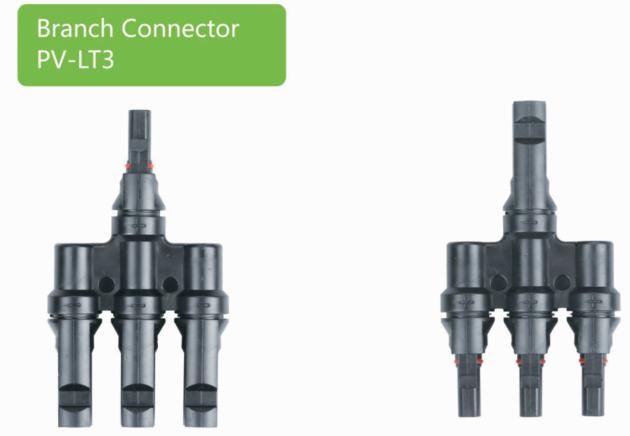

PV-LT3

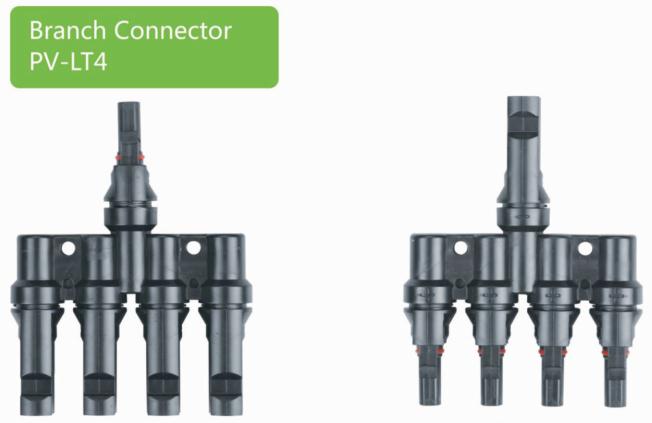

PV-LT4

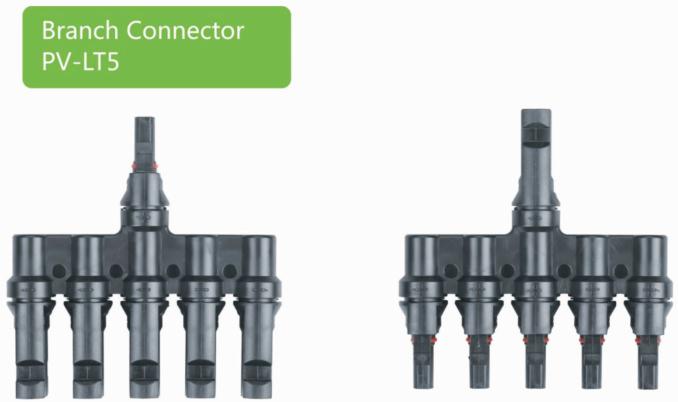

PV-LT5

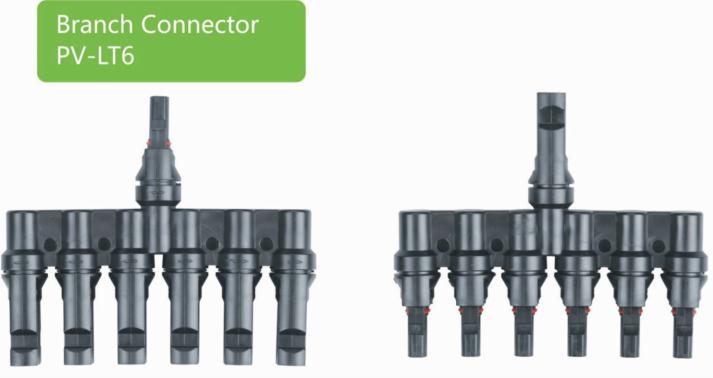

PV-LT6

Technical Data：

Insulation Material	PPO
Contact Material	Copper,Tin plated
Suitable Current	30A
Rated Voltage	1000V(TUV) 600V (UL)
Test Voltage	6KV (TUV50HZ,1min.)
Contact Resistance	<0.5mΩ
Protection Level	IP67
Ambient Temperature Range	-40℃~+85℃
Flame Class	UL 94-V0
Safety Level	Ⅱ
Pin Dimensions	φ4mm

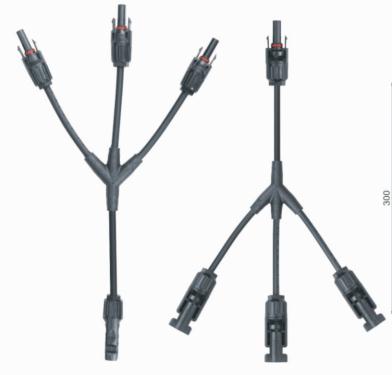

Branch Cable

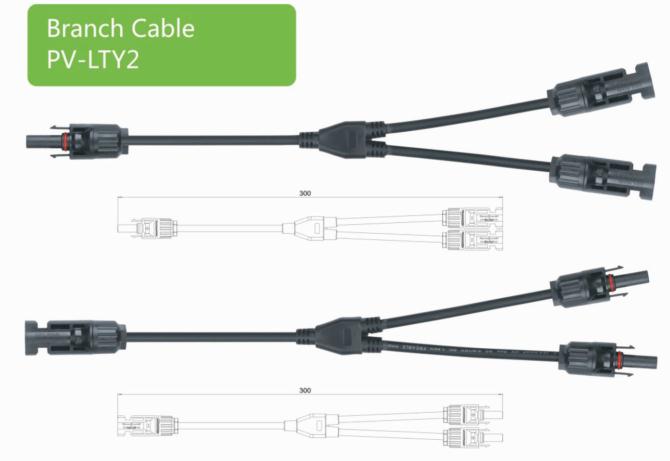

PV-LTY2

PV-LTY3

PV-LTY4

Technical Data：

Connector System	φ4mm
Rated Voltage	1000V DC(IEC)1
Rated Current	30A
Test Voltage	6KV (50HZ,1min.)
Ambient Temperature Range	-40℃...+90℃(IEC) -40℃...+75℃(UL)
Upper Limiting Temperature	+105℃(IEC)
Protection Level（Mated）	IP67
Protection Level（Unmated）	IP2X
Contact Resistance of Connector	0.5mΩ
Safety Level	Ⅱ
Contact Material	Copper Alloy, Tin Plated
Insulation Material	PC/PA
Connection mode	Snap-in
Flame Class	UL 94-V0
Salt Spray Test ,Degree of Severity 5	IEC 60068-2-52
