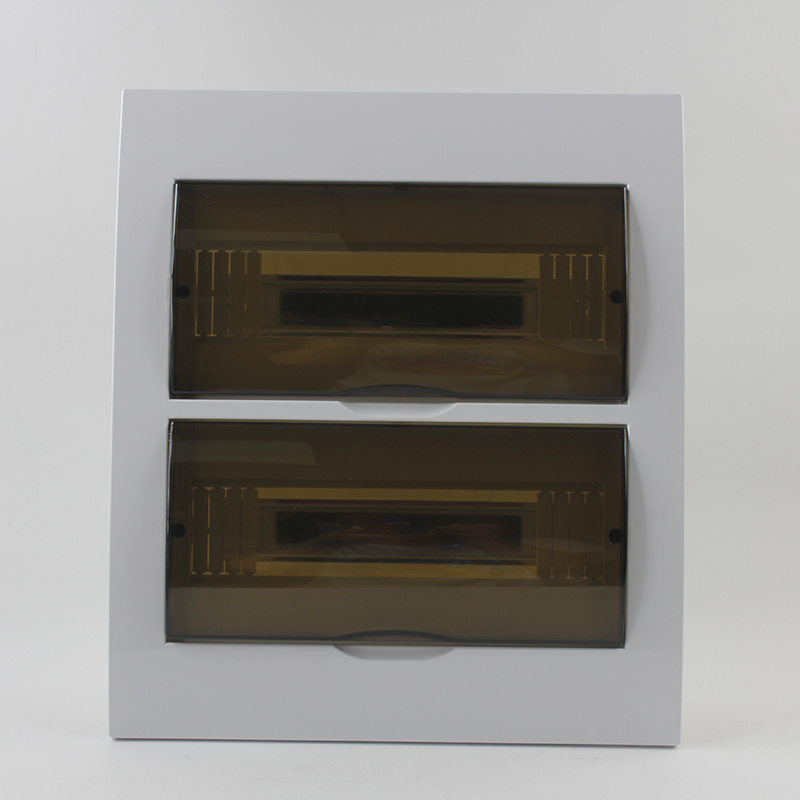

TXM-24WAYS TXM-24RAP Full Plastic Flush Type

+86-18105771210

sales@johnnelectric.com

+86-18105771210

TXM-24WAYS TXM-24RAP Full Plastic Flush Type

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Information

Model Number: TXM-24RAP
Shell Material: ABS
Bottom Material: Plastic bottom or iron bottom
Mounting Type: Flush Mounted or Surface Mounted
Transparent Cover Material: PC
Rated Current (A): 4A-36A
Rated Voltage (V): 220V -380V
Frequency: 50HZ
Poles: 2P-45P
IP Class:IP40
The Face Covering Color: White, Tawny
The Face Covering Color: The other colors are available as requested.
Samples: Distribution Box's samples is available.

Feature:
* The design is luxury and attractive, the color of transparent cover is tawny( The color can be customized according to the needs of the different interior residential designs).

* Pure ivory, high strength, never change color, transparent material is PC.

* Fixed frame, simple structure, and easy installation.

* The iron bottom model have lifting brackets.

* The regular model is internally installed with din rail for fixing the circuit breaker, which makes your installation more convenient.

* TXM series distribution box is durable, safe, reliable, and comply to EN 60947-5-1:2004+A1:2009. It can be widly used in factories, residences, shopping malls and other places.

Surface Type

Model Number	L(mm)	W(mm)	H(mm)
TXM -2MAP	94	146	87
TXM -4MAI/MAP	110	199	93
TXM -6MAI/MAP	147	199	95
TXM -8MAI/MAP	184	199	97
TXM -10MAI/MAP	220	200	99
TXM -12MAI/MAP	256	199	95
TXM -15MAI/MAP	312	200	98
TXM -18MAI/MAP	361	220	98
TXM -24MAI/MAP	270	325	100
TXM -36MAI/MAP	270	459	100

Flush Type

Model Number	L(mm)	W(mm)	H(mm)
TXM -2RAP	94	146	87
TXM -4RAI/RAP	110	199	93
TXM -6RAI/RAP	147	199	95
TXM -8RAI/RAP	184	199	97
TXM -10RAI/RAP	220	200	99
TXM -12RAI/RAP	256	199	95
TXM -15RAI/RAP	312	200	98
TXM -18RAI/RAP	361	220	98
TXM -24RAI/RAP	270	325	100
TXM -36RAI/RAP	270	459	100

Application
