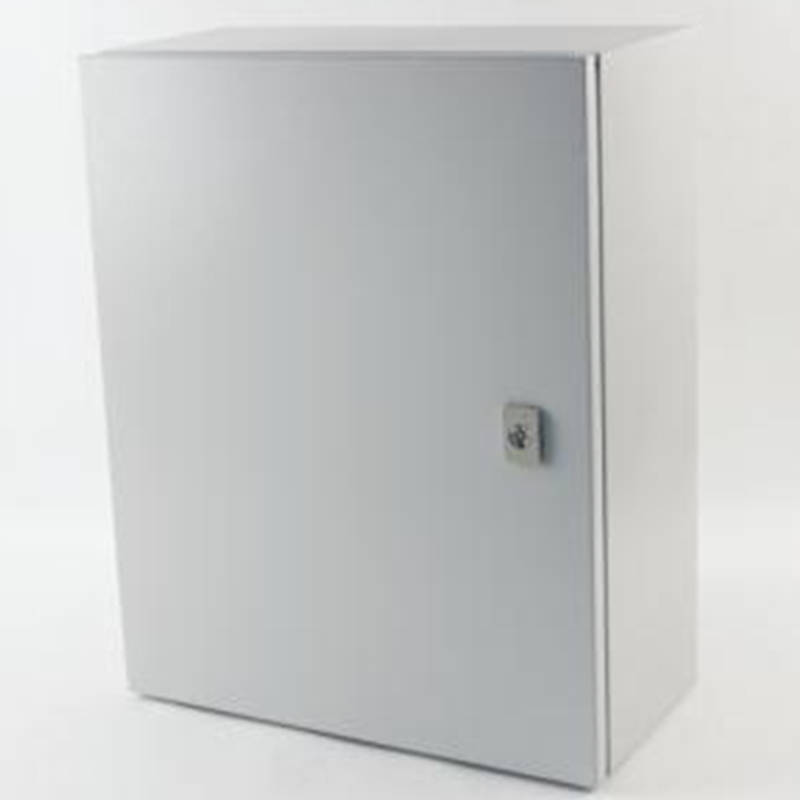

Single door wall mount enclosure

+86-18105771210

sales@johnnelectric.com

+86-18105771210

Single door wall mount enclosure

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Information

Original Place：CHINA ZHEJIANG
Single door wall mount enclosure
Color： RAL 7032 or RAL 7035
Protection degree:IP 66
Against mechanical impacts:IK 10
Supply Include：Enclosure and door ,mounting plate, lock system,gland plate, sealing gasket and fixing accessories.
Standard Configuration：Paint finish epoxy polyester powder coating textured finish
Thickness:Enclosure & door: sheet steel 1.2mm till size.ST6 820 then 1. 5mm.
Mounting p late:zinc-coated steel 1. 5mm till size ST6 820 then 2.0mm

Selection Table：

MODEL	H(mm)	W(mm)	D(mm)	No. of Lock
DB404020	200	200	150	1
DB406020	200	250	150	1
DB503020	250	250	150	1
DB504020	200	300	150	1
DB505020	250	300	150	1
DB604020	300	300	150	1
DB605020	400	300	150	1
DB606020	300	400	150	1
DB705020	400	400	150	1
DB706020	500	600	150	2
DB806020	200	300	170	1
DB808020	250	300	170	1
DB1006020	300	400	170	1
DB1008020	250	300	200	1
DB1206020	300	300	200	1
DB1208020	400	300	200	1
DB404025	300	400	200	1
DB202015	400	400	200	1
DB252015	600	400	200	1
DB252515	300	500	200	2
DB302015	400	500	200	2
DB302515	500	500	200	2
DB303015	400	600	200	2
DB304015	500	600	200	2
DB403015	600	600	200	2
DB404015	500	700	200	2
DB605015	600	700	200	2
DB302017	600	800	200	2
DB302517	800	800	200	2
DB403017	600	1000	200	3
DB302520	800	1000	200	3
DB303020	600	1200	200	3
DB304020	800	1200	200	3
DB403020	400	400	250	1
DB406025	600	400	250	1
DB504025	400	500	250	2
DB505025	500	500	250	2
DB604025	400	600	250	2
DB605025	500	600	250	2
DB606025	600	600	250	2
DB705025	500	700	250	2
DB806025	600	800	250	2
DB808025	800	800	250	2
DB1006025	600	1000	250	3
DB1008025	800	1000	250	3
DB1206025	600	1200	250	3
DB1208025	800	1200	250	3
DB504030	400	500	300	2
DB604030	400	600	300	2
DB605030	500	600	300	2
DB606030	600	600	300	2
DB705030	500	700	300	2
DB806030	600	800	300	2
DB808030	800	800	300	2
DB1006030	600	1000	300	3
DB1206030	600	1200	300	3
DB1008030	800	1000	300	3
DB1208030	800	1200	300	3
DB1408030	800	1400	300	3
DB1008035	800	1000	350	3
DB806040	600	800	400	2
DB808040	800	800	400	2
DB1006040	600	1000	400	3
DB1008040	800	1000	400	3
DB1206040	600	1200	400	3
DB1208040	800	1200	400	3
DB1408040	800	1400	400	3
