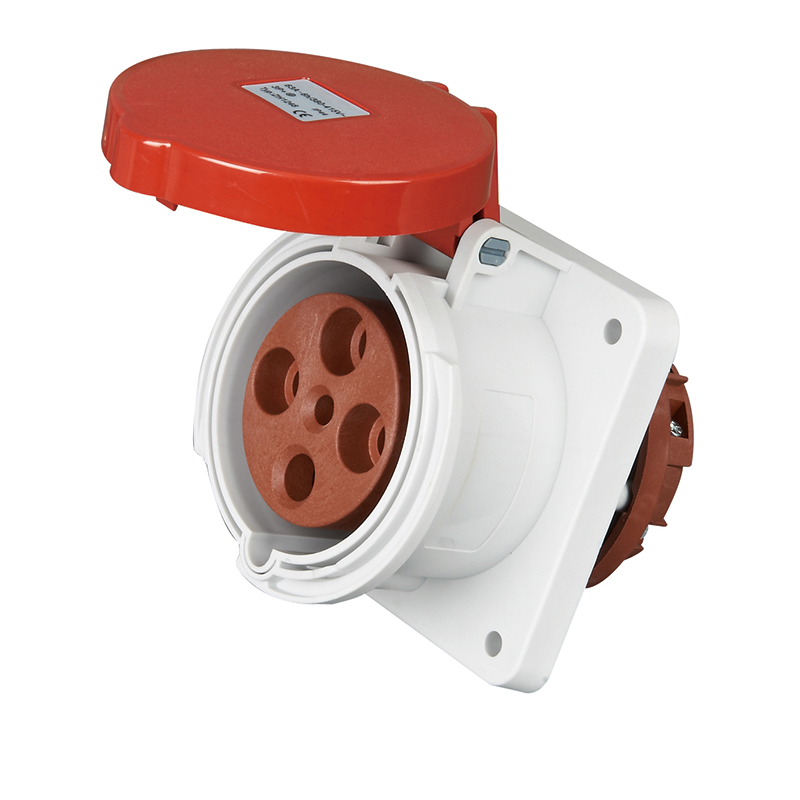

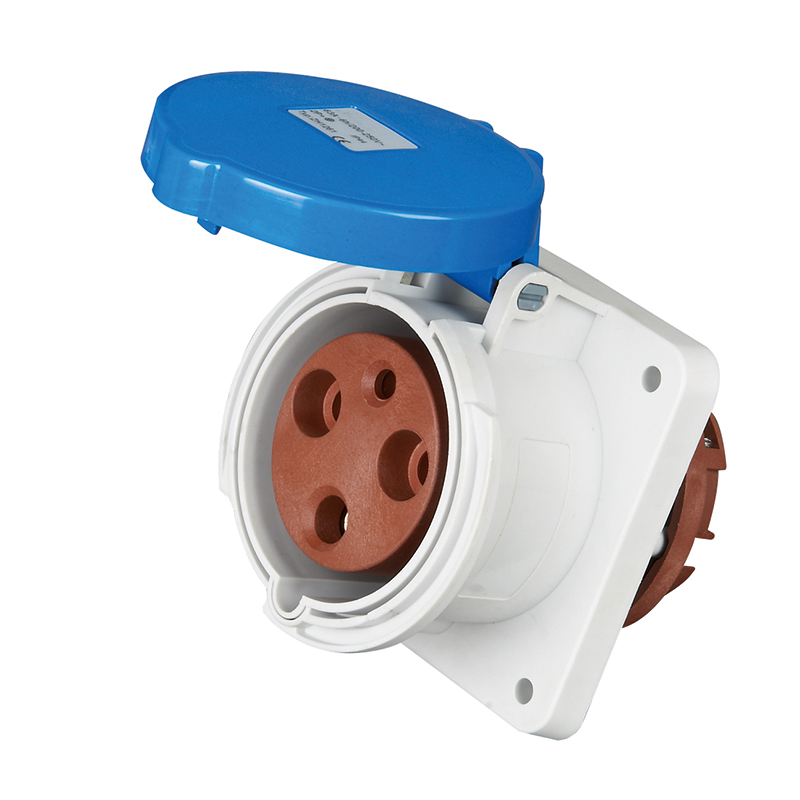

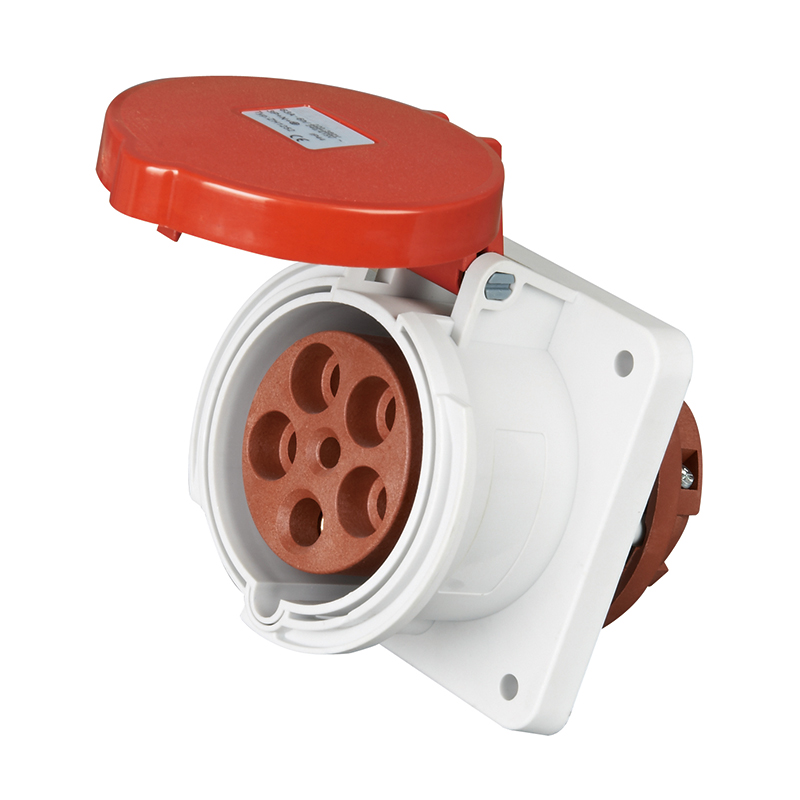

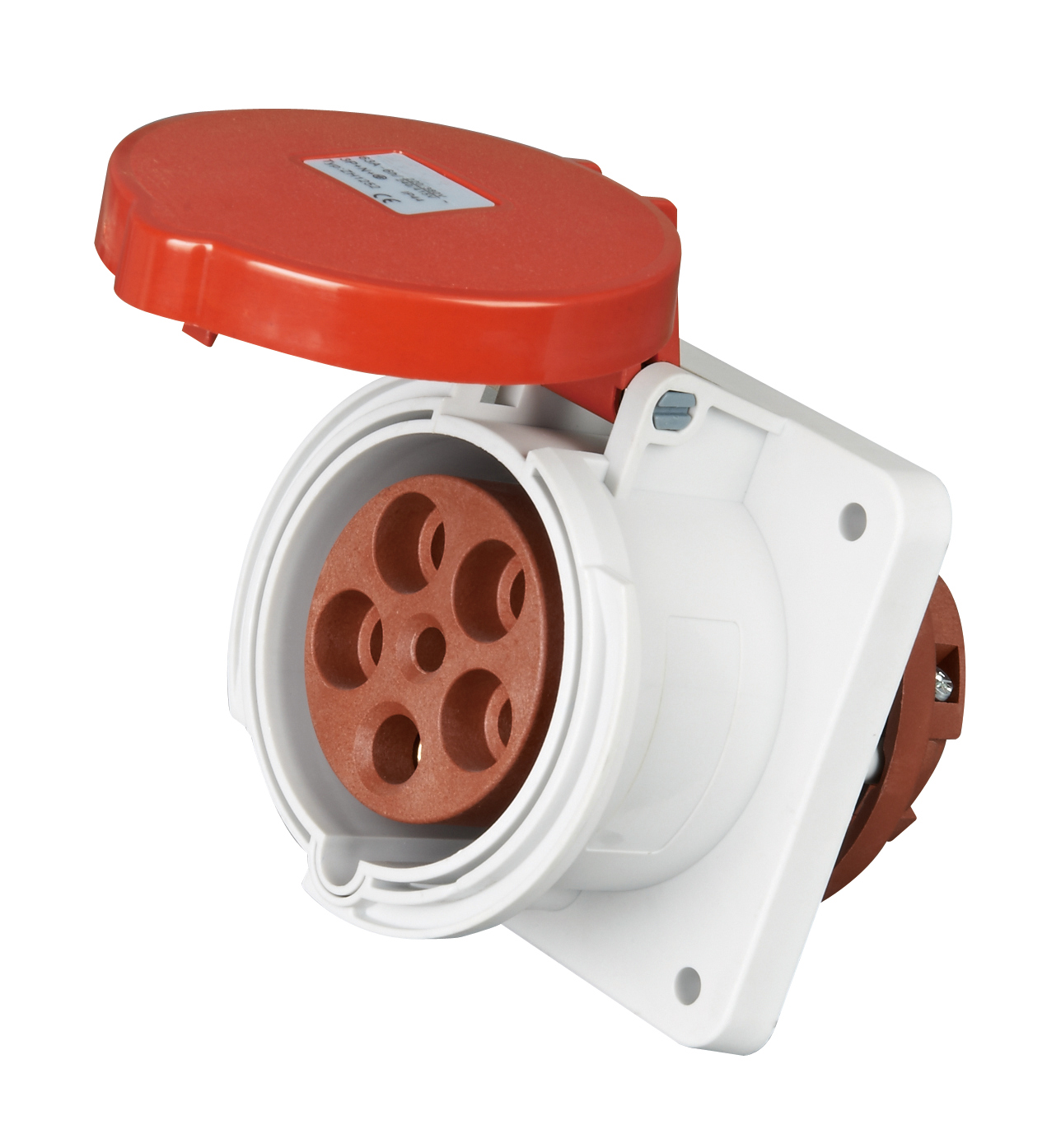

IP44 63A Straight Panel Mounted Socket

Protection level:IP44、IP67

Certificate:CCC/CE/CB/TUV/ROHS

Characteristics:Safe / Waterproof / Durable

MOQ:1

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Details
3P63A-IP44 4P63A-IP44  5P63A-IP44

Introduce:

The specific function of industrial connector is waterproof, dustproof, high temperature resistance and anti-impact.

"Industrial connector", its application is not limited to manufacturing. This connector is designed to withstand the most harsh industrial environments.



We specialize in the production of industrial plug and socket, with complete varieties, convenient connection and stable connection, so as to provide safety guarantee for all kinds of electrical equipment in special environment.

Our industrial socket and plug have the certificates of TUV, CE, CB, CCC, ROHS.



Feature:

(1) The voltage of industrial plug and socket is marked with shell color. For example, blue represents 220V and red represents 380V. The distinction method is simple and can not be mistaken.

(2) High IP rating and anti electric shock. There are IP44 and IP67 you can choose. The human body will not touch live parts to ensure safety.

(3) Good mechanical function. The commodity shell is made of excellent engineering plastics with high strength, impact resistance and no fear of collision. The rubber and plastic used have anti-aging properties. They can be used not only indoors, but also outdoors. They are durable.

(4) Heat resistant and flame resistant. The shell and internal insulating parts have heat resistance and flame retardancy.

(5) Long service life. The number of normal unplugging operation cycles is more than 5000.

(6)Versatility. Our products comply with DIN VDE 0623 German standard and IEC 60309-2 international standard, and are in line with the world.

Specifications

Current

Poles

110V

50a.60Hz

230V

50a.60Hz

400V

50a.60Hz

500V

50a.60Hz

>50-500V

 100-300Hz

>50-500V

a.300-500Hz

Package Unit

Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

PCS/BOX

G/PC

63A

3

ZH1260

ZH1261

ZH1262







5

523

4

ZH1246

ZH1247

ZH1248

ZH1249





5

562

5

ZH1250

ZH1251

ZH1252







5

629

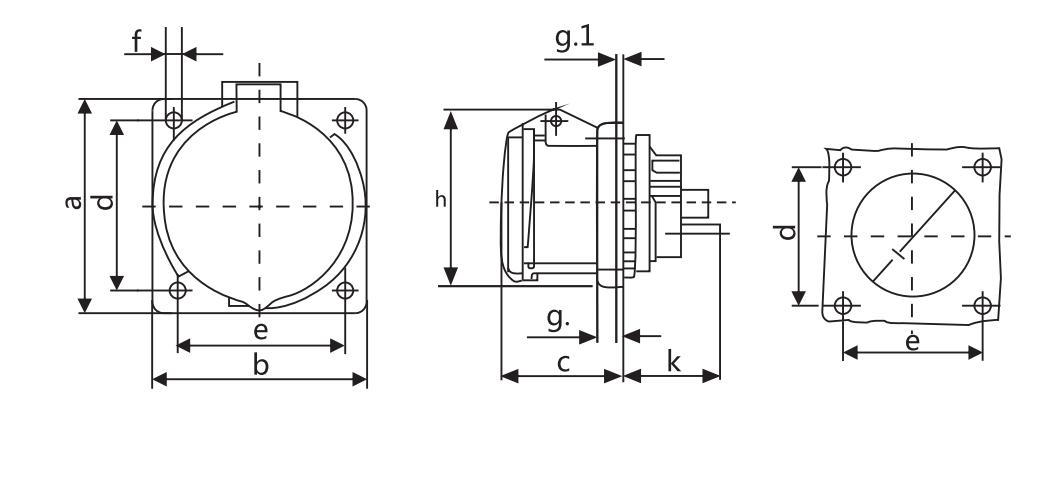

Current

Poles

a

b

c

d

e

f

g.

g.1

h

h1

k

i

63A

3

107

100

80

85

77

6

12

2

103

-

55

88

4

107

100

80

85

77

6

12

2

113

-

55

88

5

107

100

80

85

77

6

12

2

113

-

55

88

Conductor cross-sectional area (mm²) Min To Max 10-16
